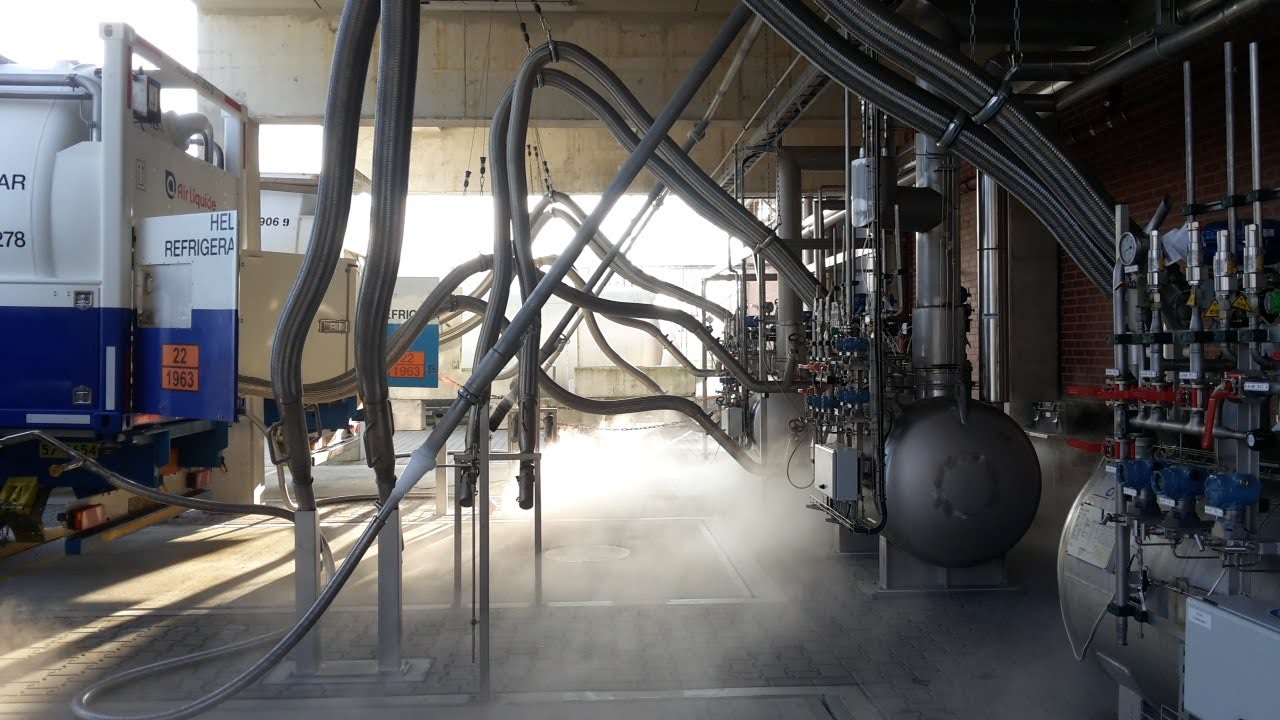

Liquid Helium (LHe) Loading Bays
High-capacity cryogenic loading infrastructure tailored for the industrial helium market. We design and install automated loading bays specifically engineered for safely and efficiently filling LHe ISO containers.
Connecting production to the global supply chain
Helium is a rare, vital resource that must be continuously transported from major production hubs to end-users worldwide. The critical link in this logistics chain is the transfer of bulk liquid helium into transportable ISO containers. Air Liquide provides specialized Liquid Helium (LHe) Loading Bays designed for the industrial market. Operating at Technology Readiness Level (TRL) 9, our customized loading infrastructure ensures that this highly volatile fluid is transferred securely, with minimal losses, and maximum operational efficiency.
Comprehensive loading infrastructure
We do not just supply pipes; we deliver a complete, integrated transfer solution. Our loading bays are tailored specifically for LHe ISO containers and are equipped with all the necessary components for seamless operation.
A complete system architecture:
Integrated components: Each bay incorporates all required elements for the filling process, including secure connections, conditioning systems, and highly precise measurement instruments to guarantee exact mass loading.
Ergonomic design: The bays are designed for easy operation by ground crews, featuring highly maneuverable cryogenic flexibles and robust support structures that facilitate fast and safe coupling to the transport containers.
Automated for speed and safety
In high-volume industrial environments, human error during cryogenic transfer can lead to costly product loss or safety incidents. Our loading bays are designed to remove these risks through advanced automation.
The entire transfer system is directly connected to a central Programmable Logic Controller (PLC). This allows for the execution of strictly controlled, automated sequences covering every critical phase: from the initial cooldown of the lines to the steady-state filling and the final secure disconnection.
